Connecting the Wio Terminal to Azure IoT

It’s been a few months now since I started playing with the Wio Terminal from Seeed Studio. It is a pretty complete device that can be used to power a wide range of IoT solutions—just look at its specifications!

Wio Terminal Features
  • Cortex-M4F running at 120MHz (can be overclocked to 200MHz) from Microchip (ATSAMD51P19) ;
  • 192 KB of RAM, 4MB of Flash ;
  • Wireless connectivity: WiFi 2.4 & 5 GHz  (802.11 a/b/g/n), BLE, BLE 5.0, powered by a Realtek RTL8720DN module ;
  • 2.4″ LCD screen, 320×240 pixels ;
  • microSD card reader ;
  • Built-in sensors and actuators: light sensor, LIS3DH accelerometer, infrared emitter, microphone, buzzer, 5-way switch ;
  • Expansion ports: 2x Grove ports, 1x Raspberry-Pi compatible 40-pin header.

Wireless connectivity, extensibility, processing power… on paper, the Wio Terminal must be the ideal platform for IoT development, right? Well, ironically, one thing it doesn’t do out-of-the-box is to actually connect to an IoT cloud platform!

You will have guessed it by now… In this blog post, you’ll learn how to connect your Wio Terminal to Azure IoT. More importantly, you will learn about the steps I followed, giving you all the information you need in order to port the Azure IoT Embedded C libraries to your own IoT device.

Connecting your Wio Terminal to Azure IoT

I have put together a sample application that should get you started in no time.

You will need a Wio Terminal, of course, an Azure IoT Hub instance, and a working Wi-Fi connection. The Wio Terminal will need to be connected to your computer over USB—kudos to Seeed Studio for providing a USB-C port, by the way!—so it can be programmed.

Here are the steps you should follow to get your Wio Terminal connected to Azure IoT Hub:

  1. If you don’t have an Azure subscriptioncreate one for free before you begin.
  2. Create an IoT Hub and register a new device (i.e. your Wio Terminal). Using the Azure portal is probably the most beginner-friendly method, but you can also use the Azure CLI or the VS Code extension. The sample uses symmetric keys for auhentication.
  3. Clone and open the sample repository in VS Code, making sure you have the PlatformIO extension installed.
  4. Update the application settings (include/config.h) file with your Wi-Fi, IoT Hub URL, and device credentials.
  5. Flash your Wio Terminal. Use the command palette (Windows/Linux: Ctrl+Shift+P / macOS: ⇧⌘P) to execute the PlatformIO: Upload command. The operation will probably take a while to complete as the Wio Terminal toolchain and the dependencies of the sample application are downloaded, and the code is compiled and uploaded to the device.
  6. Once the code has been uploaded successfully, your Wio Terminal LCD should turn on and start logging connection traces.
    You can also open the PlatformIO serial monitor to check the logs of the application (PlatformIO: Serial Monitor command).
> Executing task: C:\Users\kartben\.platformio\penv\Scripts\platformio.exe device monitor <
--- Available filters and text transformations: colorize, debug, default, direct, hexlify, log2file, nocontrol, printable, send_on_enter, time
--- More details at http://bit.ly/pio-monitor-filters
--- Miniterm on COM4  9600,8,N,1 ---
--- Quit: Ctrl+C | Menu: Ctrl+T | Help: Ctrl+T followed by Ctrl+H ---
Connecting to SSID: WiFi-Benjamin5G
......
> SUCCESS.
Connecting to Azure IoT Hub...
> SUCCESS.

Your device should now be sending its accelerometer sensor values to Azure IoT Hub every 2 seconds, and be ready to receive commands remotely sent to ring its buzzer.

Please refer to the application’s README to learn how to test that the sample is working properly using Azure IoT Explorer.

It is important to mention that this sample application is compatible with IoT Plug and Play. It means that there is a clear and documented contract of the kind of messages the Wio Terminal may send (telemetry) or receive (commands).

You can see the model of this contract below—it is rather straightforward. It’s been authored using the dedicated VS Code extension for DTDL, the Digital Twin Description Language.

{
  "@context": "dtmi:dtdl:context;2",
  "@id": "dtmi:seeed:wioterminal;1",
  "@type": "Interface",
  "displayName": "Seeed Studio Wio Terminal",
  "contents": [
    {
      "@type": [
        "Telemetry",
        "Acceleration"
      ],
      "unit": "gForce",
      "name": "imu",
      "schema": {
        "@type": "Object",
        "fields": [
          {
            "name": "x",
            "displayName": "IMU X",
            "schema": "double"
          },
          {
            "name": "y",
            "displayName": "IMU Y",
            "schema": "double"
          },
          {
            "name": "z",
            "displayName": "IMU Z",
            "schema": "double"
          }
        ]
      }
    },
    {
      "@type": "Command",
      "name": "ringBuzzer",
      "displayName": "Ring buzzer",
      "description": "Rings the Wio Terminal's built-in buzzer",
      "request": {
        "name": "duration",
        "displayName": "Duration",
        "description": "Number of milliseconds to ring the buzzer for.",
        "schema": "integer"
      }
    }
  ]
}

When connecting to IoT Hub, the Wio Terminal sample application “introduces itself” as conforming to the dtmi:seeed:wioterminal;1 model.

This allows you (or anyone who will be creating IoT applications integrating with your device, really) to be sure there won’t be any impedence mismatch between the way your device talks and expects to be talked to, and what your IoT application does.

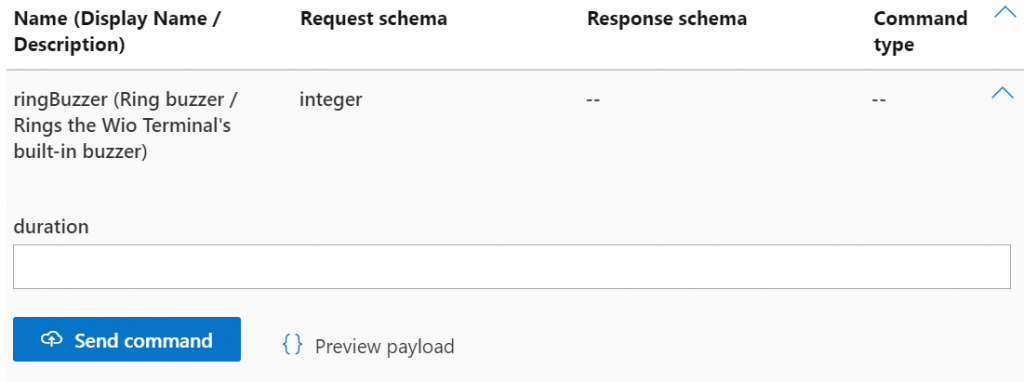

A great example of why being able to automagically match a device to a corresponding DTDL model is useful can be illustrated with the way we used the Azure IoT Explorer earlier. Since the device “introduced itself” when connecting to IoT Hub, and since Azure IoT Explorer has a local copy of the model, it automatically showed us a dedicated UI for sending the ringBuzzer command!

Thanks to IoT Plug and Play, any application or tool can easily leverage the model that describes a device’s capabilities to.
Here, Azure IoT Explorer uses the model to help the user send commands that the device can actually understand.

Azure SDK for Embedded C

In the past, adding support for Azure IoT to an IoT device using the C programming language required to either use the rather monolithic (ex. it is not trivial to bring your own TCP/IP or TLS stack) Azure IoT C SDK, or to implement everything from scratch using the public documentation of Azure IoT’s MQTT front-end for devices.

Enter the Azure SDK for Embedded C!

The Azure SDK for Embedded C is designed to allow small embedded (IoT) devices to communicate with Azure services.

The Azure SDK team has recently started to put together a C SDK that specifically targets embedded and constrained devices. It provides a generic, platform-independent, infrastructure for manipulating buffers, logging, JSON serialization/deserialization, and more. On top of this lightweight infrastructure, client libraries for e.g Azure Storage or Azure IoT have been developed.

You can read more on the Azure IoT client library here, but in a nutshell, here’s what I had to implement in order to use it on the Wio Terminal connected:

  • As the sample uses symmetric keys to authenticate, we need to be able to generate a security token.
    • The token needs to have an expiration date (typically set to a few hours in the future), so we need to know the current date and time. We use an NTP library to get the current time from a time server.
    • The token includes an HMAC-SHA256 signature string that needs to be base64-encoded. Luckily, the recommended WiFi+TLS stack for the Wio Terminal already includes Mbed TLS, making it relatively simple to compute HMAC signatures (ex. mbedtls_md_hmac_starts) and perform base64 encoding (ex. mbedtls_base64_encode).
  • The Azure IoT client library helps with crafting MQTT topics that follow the Azure IoT conventions. However, you still need to provide your own MQTT implementation. In fact, this is a major difference with the historical Azure IoT C SDK, for which the MQTT implementation was baked into it. Since it is widely supported and just worked out-of-the-box, the sample application uses the PubSubClient MQTT library from Nick O’Leary.
  • And of course, one must implement their own application logic. In the context of the sample application, this meant using the Wio Terminal’s IMU driver to get acceleration data every 2 seconds, and hooking up the ringBuzzer command to actual embedded code that… rings the buzzer.

Conclusion

I hope you found this post useful! I will soon publish additional articles that go beyond the simple “Hey, my Wio Terminal can send accelerometer data to the cloud!” to more advanced use cases such as remote firmware upgrade. Stay tuned! 🙂

Let me know in the comments what you’ve done (or will be doing!) with your Wio Terminal, and also don’t hesitate to ask any burning question you may have.

If you liked this article, don’t forget to subscribe to be notified of upcoming publications. And of course, you can also always find me on Twitter.

By Benjamin Cabé

Benjamin Cabé is a technology enthusiast with a passion for empowering developers to build innovative solutions. He has invented an award-winning open source and open hardware artificial nose that he likes to use as an educational platform for people interested in diving into the world of embedded development.
He is currently a Developer Advocate for the Zephyr Project at the Linux Foundation and lives near Toulouse, France, where he enjoys baking sourdough bread with the help of his artificial nose.
